[統計]什麼是 CDF (Cumulative Distribution Function)?

在進入連續型隨機變數(Continuous Random Variable)前先插播介紹何謂 CDF。


CDF (Cumulative Distribution Function)

定義 Definition

  • The cumulative distribution function (CDF) of random variable \(X\) is defined as

$$ F_X(x) = P(X \leq x), \forall x \in {\Bbb R} $$

Source

Mathematical Statistics with Applications 這本書將 CDF 稱為 distribution function,
wikipedia 則翻譯為累積分布函數

以下再分 1.離散型函數2.連續型函數 來看,


離散型隨機變數的 CDF

以擲兩枚硬幣為例,出現 head 為 1,tail 為 0,
其隨機變數 \(X\) 的 PMF 函數為

$$ P_X(x) = \left{ \begin{array}{rcl} 1/4,& ;for; x = 0 \ 1/2,& ;for; x = 1 \ 1/4,& ;for; x = 2 \ 0,& otherwise \ \end{array}\right. $$

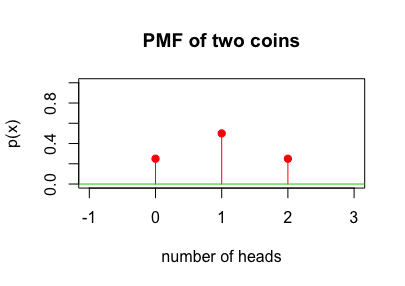

PMF 函數圖為, ![PMF_two coins.png](/blog/img/posts/PMF_two coins.png)

則它的 CDF 累積分佈函數為 $$ F_X(x) = \left{ \begin{array}{rcl} 0,& &for; x < 0 \ 1/4,& &for; 0 \leq x < 1 \ 3/4,& &for; 1 \leq x < 2 \ 1,& &for; x \geq 2\ \end{array}\right. $$

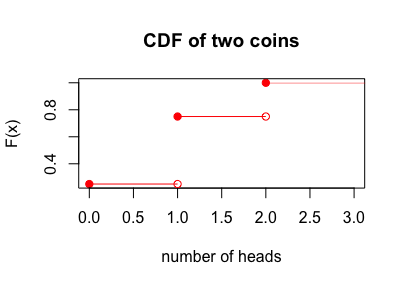

CDF 函數圖為, ![CDF_two coins.png](/blog/img/posts/CDF_two coins.png)

可以發現,離散型的 CDF \(F_X(x)\) 為不連續的函數圖。

關於離散型的 CDF 這影片有更詳細的說明。


連續型隨機變數的 CDF

那如果今天有個隨機變數 \(X\),它的 CDF \(F(X)\) 為連續函數呢?

定義 Definition

  • A random variable \(X\) with CDF \(F(X)\) is said to be continuous if \(F(X)\) is a continuous function for all \(X \in {\Bbb R} \). Source
